Linux Free Course Module 5 Chapter 2: BUILDING AND USING LIBRARIES

With a static library, every running program has its own copy of the library.

This is because multiple programs can use a shared library simultaneously. Therefore, only one copy of the library is needed in memory at a time.

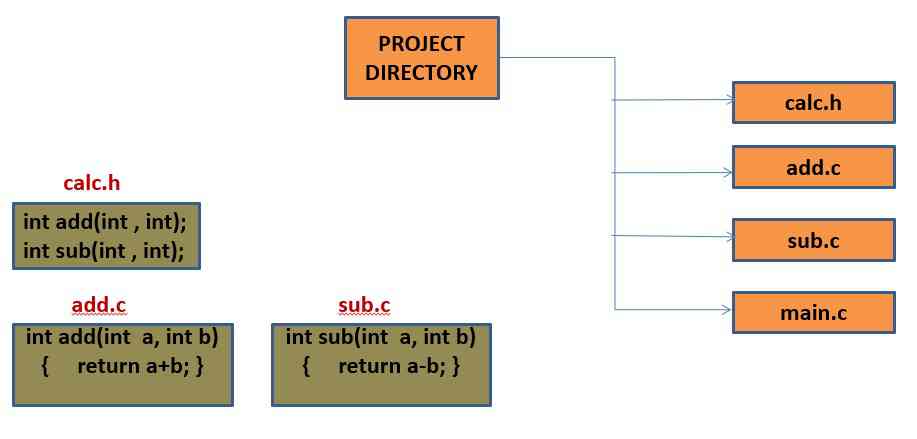

$ gcc -c -Wall add.c

$ gcc -c -Wall sub.c

We specify the -c option to tell gcc to compile only (don’t link) and also to turn on all warnings. This will generate add.o and sub.o

$ ar -cru libmycalc.a add.o sub.o

  ar command to build our library (libmycalc.a).

The c option specifies to create the static library (unless it already exists, in which case the option is ignored).

The r option tells ar to replace existing objects in the static library (if they already exist).

The u option is a safety option to specify that objects are replaced in the archive only if the objects to be inserted are newer than existing objects in the archive (of the same name).

We now have a new file called libmycalc.a, which is our static library containing two objects: add.o and sub.o. Let’s now look at how we can build our application using this static library.

$ gcc main.c   -L.  -lmycalc  -o  main

$  ./main

-lmycalc, gcc would look for a library called libmycalc.a.

 $ ar -t libmycalc.a

    add.o

    sub.o

   $ ar -d libmycalc.a sub.o

   $ ar -t libmycalc.a

   add.o

  $ ar -d libmycalc.a  sub.o

  $ ar -dv libmycalc.a subo

  No member named ‘sub.o’

 $ ar -xv libcalc.a  sub.o

    x – initapi.o

 $ ls

     sub.o libmycalc.a

 $ ar -t libmycalc.a

    add.o sub.o

• First build a shared library using our add.o and sub.o objects.
• Since the library and application are not tied together as they are in a static library, the resulting library can’t assume anything about the binding application.
• In addressing, references must be relative.
• The loader automatically resolves all relative addresses as the shared library is loaded.
• To build our source files for position-independence, we use the PIC option of gcc:

  $ gcc -fPIC -c add.c

  $ gcc -fPIC -c sub.c

• This results in two new object files containing position-independent code.

•  We can create a shared library of these using gcc and the -shared flag.

$ gcc -shared add.o sub.o -o libmycalc.so

•  Note that we use the .so suffix to identify that the file is a shared library (shared object).

• To build our application using the new shared object, we link the elements back together as we  did with the static library:

  $ gcc main.c -L. -lmycalc -o main

•  We can tell that our new image is dependent upon our shared library by using the ldd command.

   $ ldd test

libmycalc.so => not found

libc.so.6 => /lib/tls/libc.so.6 (0x42000000)

/lib/ld-linux.so.2 => /lib/ld-linux.so.2 (0x40000000)

•  The dynamic linker/loader (ld-linux.so.2)

•  Note that our libmycalc.so file is shown as not found.

•  It’s present in the current subdirectory with our application, but it must be explicitly specified to GNU/Linux through the LD_LIBRARY_PATH environment variable.

$ export LD_LIBRARY_PATH=./

 $ ldd test

libmycalc.so => ./libmycalc.so (0x40017000)

libc.so.6 => /lib/tls/libc.so.6 (0x42000000)

/lib/ld-linux.so.2 => /lib/ld-linux.so.2 (0x40000000)

$ ./test

./test: error while loading shared libraries: libmycalc.so:

cannot find shared object file: No such file or directory.

• This library can be loaded at any time during the execution of an application, unlike a shared object that is loaded immediately upon application start-up.

 $ gcc -fPIC -c add.c

 $ gcc -fPIC -c sub.c

 $ gcc -shared add.o sub.o -o libmycalc.so

 $ su –

  <provide your root password>

 $ cp libmycalc.so /usr/local/lib

•  The answer is that we must modify our test application to change the way that we access the API.

• void *dlopen( const char *filename, int flag );
•  const char *dlerror( void );
•  void *dlsym( void *handle, char *symbol );
• int dlclose( void *handle );

#include<stdio.h>

#include<stdlib.h>

#include<dlfcn.h>

#include"calc.h"

void main()

 {

   int a,b,result;

   void *handle;

   char *err;

   int (*add_d)(int,int);

   int (*sub_d)(int,int);



    /* Open a handle to the dynamic library */

   handle=dlopen("/usr/local/lib/libmycalc.so",RTLD_LAZY);

   if(handle==(void *)0)

    {

      fputs(dlerror(),stderr);

      exit(-1);

    }



  /*Check access to add() function*/

    add_d= dlsym(handle,"add");

    err = dlerror();

    if(err!=NULL)

    {   fputs(err, stderr);

        exit(-1);

    }


 /*Check access to sub() function*/
    sub_d= dlsym(handle,"sub");
    err = dlerror();
    if(err!=NULL)
    {   fputs(err, stderr);
        exit(-1);
    }

     // Call dynamic add function

    printf("Enter 2 numbers\n");
    scanf("%d %d",&a,&b);
    result= (*add_d)(a,b);
    printf("\n Result after add = %d",result);
   // Call dynamic sub function

    printf("\nEnter 2 numbers\n");
    scanf("%d %d",&a,&b);
    result= (*sub_d)(a,b);
    printf("\n Result after add = %d",result);

   // Close our handle to the dynamic library
     dlclose(handle);

   }

• The first step in using a dynamic library is opening it with dlopen
•   We specify the library we need to use (/usr/local/lib/libmycalc.so) and also a single flag.
• Of the two flags that are possible (RTLD_LAZY and RTLD_NOW), we specify RTLD_LAZY to resolve references as we go, rather than immediately upon loading the library, which would be the case with RTLD_NOW.
• The function dlopen returns an opaque handle representing the opened library.
•   Note that if an error occurs, we can use the dlerror function to provide an error string suitable for emitting to stdout or stderr.
•   The API function dlsym searches our shared library for the function defined  (“add”)
•  Upon locating it, a (void *) pointer is returned and stored in a local function pointer.
•   And if an error string was returned, we emit it and exit the application.
• Similarly the API function dlsym searches our shared library for the function defined (“sub”)
• Actual calling of add function using local function pointer add_d
• Actual calling of add function using local function pointer sub_d
• Our last step in the main application is to close out the library. This is done with the dlclose API function .
• If the API finds that there are no other users of the shared library, then it is unloaded.

$ file /usr/local/lib/libmycalc.so

   /usr/local/lib/libmyrand.so: ELF 32-bit LSB shared object,

Intel 80386, version 1 (SYSV), not stripped $

 So, using file utility, we can see that our shared library is a 32-bit ELF object for the Intel 80386 processor family. It has been defined as “not stripped,” which simply means that debugging information is present.

  $ size /usr/local/lib/libmycalc.so

     text   data   bss   dec   hex   filename

     2013  264    4     2281 8e9   /usr/local/lib/libmycalc.so

 $ nm -n /usr/local/lib/libmycalc.so | grep " T "

we use nm to print the symbols within the shared library, but then only emit those with the tag ” T ” to stdout (those symbols that are part of the .text section, or code segments). We also use the -n option to sort the output numerically by address, rather than the default, which is alphabetically by symbol name. This gives us relative address information within the library; if we wanted to know the specific sizes of these .text sections, we could use the -S option.

$ objdump -disassemble -S /usr/local/lib/libmycalc.so

• -disassemble (to disassemble to the native instruction set)

•  -S to output interspersed source code

•  This utility creates an index of the contents of the library and stores it in the library file itself.

• When this index is present in the library, the linking stage of building an image can be sped up considerably.

• Therefore, the ranlib utility should be performed whenever a new static library is created.

  $ ranlib libmycalc.a

•  Note that the same thing can be performed using the ar command with the -s option, as:

$ ar -s libmycalc.a
